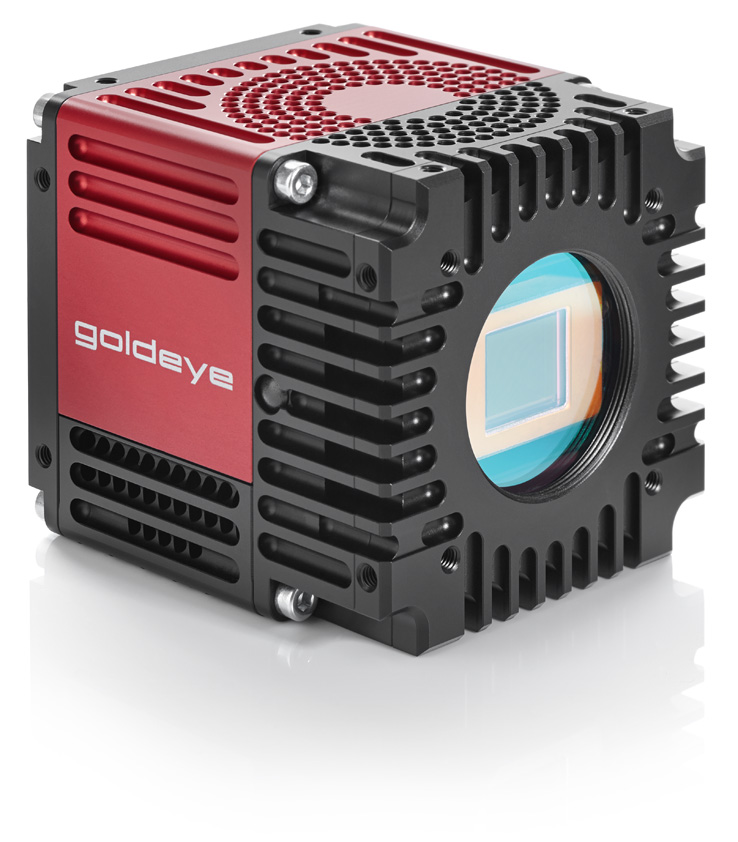

Goldeye

品牌：Allied Vision
型号：Gigabit Ethernet
应用领域：
类别：相机

产品详情

Goldeye	P-008 SWIR	P-032 SWIR
Interface	IEEE 802.3 1000baseT
Resolution	320 x 256	636 x 508
Spectral range	SWIR, 900 - 1700 nm
Sensor	InGaAs 320 x 256	InGaAs 636 x 508
Sensor type	InGaAs
Sensor size	No standard size
Cell size	30 μm x 30 μm	25 μm x 25 μm
Lens mount	C-Mount	C/F-Mount
Max frame rate at full resolution	118 fps	30 fps
A/D	14 bit
	Output
Bit depth	12 bit
Mono modes	Mono12
	Operating conditions/Dimensions
Operating temperature	0°... +30°C, Cool: 0°... +40°C	0°... +35 °C
Power requirements (DC)	12 V
Power consumption (12 V)	7.2 W / Cool: 33.6 W	15.6 W
Mass	660 g /Cool: 1420 g	1110 g (C-Mount)
Body Dimensions (L x W x H in mm)	89 x 90 x 71 / Cool: 116 x 90 x 99	115.8 x 90 x 99 (C-Mount)
Regulations	CE, RoHS (2002/95/EC)
